Multi-Guardwg system

Acoustic Magnetic System  9001 Contact system

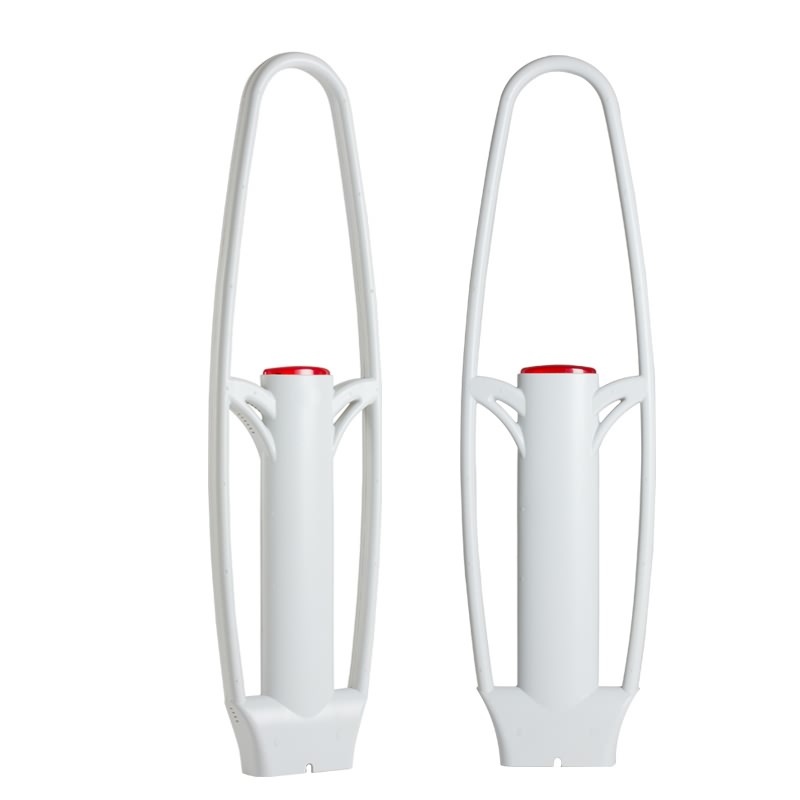

Multi-Guard 58khz AM eas security alarm system
eceiver
Inputs
2 ports
Operating Frequency
58Khz
Transmitter

Operating Frequency
58Khz
Transmit Burst Duration
1.6ms
Burst Rate (50Hz)
37.5Hz
Burst Rate (60Hz)
45Hz
Output Port Relay
N.O.
Contact Switching Current
1A
Contact Switching Voltage
120vac/24vdc
Regulatory
CE, FCC, UL
Electro-Mechanical
Dimensions per Pedestal (HxW)
1470x440mm (58x15.5 in.)
Combined Weight
14 kg (31 lb) @50/60Hz
Current Draw
0.5/0.25A
Input Power
55W
Environmental
Ambient Temperature
0 - 30°C (32 - 86°F)
Packaging Details: 158cm x 42cm x 36 cm, 17 KG

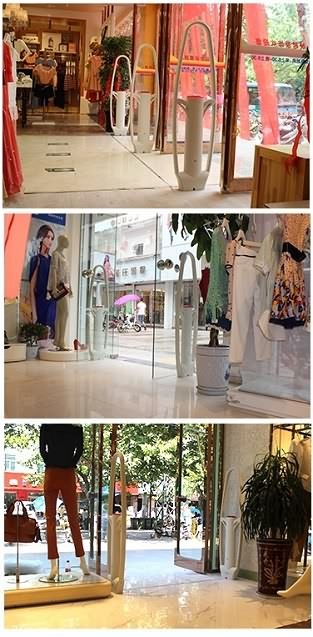

Application:
This products are widely used in Retailed chain,Supermarket,Clothing store,Upper
end boutique,Drug storeand Library.
