Acoustic Magnetic System  9003 Contact system

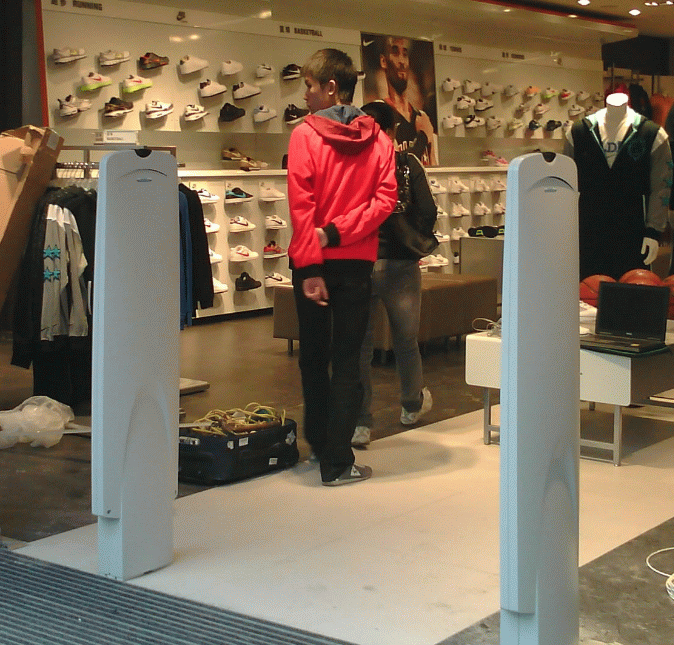

Ultra•Shield Self-ContainedPedestal Simple, low-cost installationfor

a reliable, affordable anti-theft solution. The Ultra•Shield Self-Contained

Pedestalcombines simplicity with reliableperformance to deliver an

affordableanti-shoplifting solution. Designed to saveon installation

expenses, the pedestalssimply bolt to the floor and plug intoan ordinary

A/C outlet, eliminatingthe need for an external controller.Constructed

with high-impact ABS, thissystem features Sensormatic AM EAS technology

to deliver up to 1.8m (6ft) ofdetection coverage between pedestals.The

audible alarm in the base of theprimary pedestal and LED light located

onthe top of the primary antenna suppliesboth audible and visual

notification ifprotected merchandise passes throughthe detection zone.

Through system configuration, “Tags-too-Close” is an offered feature

developedto help store associates better managemerchandising of

tagged goods at thefront of the store. This feature helpsreduce

unnecessary and costly servicecalls and decreases nuisance alarms

toenhance the shopper experience. Primary PedestalZS1002-S Secondary

Pedestal Product Compatibility Sensormatic AM SensorsRanger Receivers

Specifications Height .................................. 135cm (53in)

Width .................................. 35cm (13.8in)

Thickness/Depth............. 12.3cm (4.75in)

WeightPrimary Pedestal .................. 11.3kg (25lbs)

Secondary Pedestal ................. 9kg (20lbs)

Power Supply Primary Input100-120/220-240Vac2.0/1.0A@50-60HzPrimary

Power Fuse1.25A, 250V, slo-blowCurrent Draw1.1A max
ltra•Shield Self-Contained Pedestal Environmental Constraints Operating

Temperature0°C to 35°C (32°F to 95°F)Relative Humidity0 to 90%,

non-condensing Declarations
