Acoustic Magnetic System  9010 Contact system

Material StoreProtect Silver XL
160* 55*12CM
SIZE
1600(H)*550(W) MM
Working Frequency
58KHZ
Working Style
Working with Host
Signal Processing Style
Digital Signal Processing
Detecting range

DR AM Soft label
0.6 *2 sides(0.18' *2 sides)
AM Super hard tag
0.9'*2 Sides (0.27'*2 Sides )
Specification:

Detection area
More than 95%
Output :
24 DC ,100 Ma
Power
≤25W
Voltages
AC(50~60hz)110~230V ≤15W
Weight
15kg
Working Environment
20℃-45℃
Signal processing mode
DSP
Main Advantages:

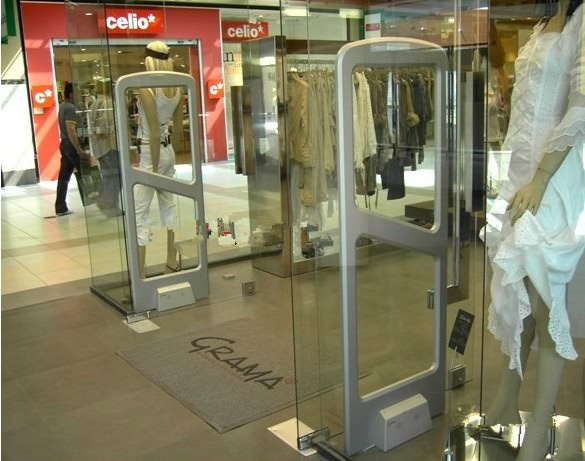

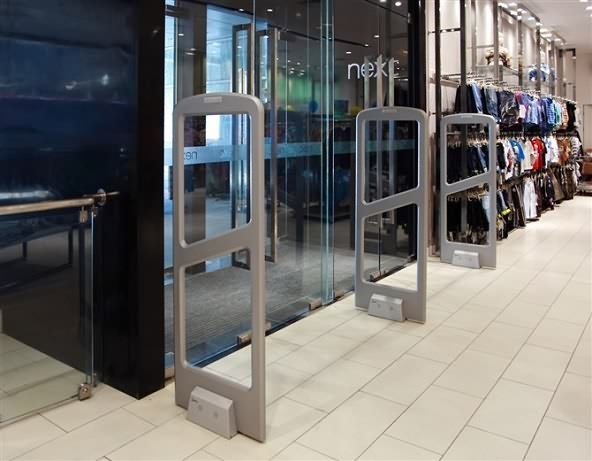

Concealment: install antennas behind the door, good concealment
2. Strong anti-jamming capability
3. Most popular in First -class clothing store and shopping mall
4. Stability: adopted software controlling technology, more stable and low fault alarm rate
5. Digital Signal Processing with smart electronic board
