Acoustic Magnetic System  9005 Contact system

Packaging & Delivery

Packaging Details: 1pc/ctn, 170X58X15cm,13kg/ctn

AS-9005 AM EAS pedestal adopted advanced DSP full-digital technology,unique tag identification program with stable performance.

DongSheng anti-theft sensor 58khz eas system retail security am system

Parameters:

Input Voltage
220V AC +/- 10% 50Hz/60Hz
Power consumption
≤ 25W
Operate Frequency
58KHz
Outline Dimension
1390x340x16mm
Net Weight
10kg
Detection Range Each Side
Dr AM label:2x0.7m; pencil tag:2x1m Big AM tag :2x1.2m
Operate Tags
AM hard tag, DR label
Alarm Way
acousto-optic alarm
Temperature
-15 - 60 ℃
Humidity
≥ 95% RH
Output on interface
24V 100mA
Material
ABS or PC

1. International advanced 3rd technology, auto-adjust circuit

2. Strong anti-interference ability, high stability,perfect performance on site

3. False alarm near to zero

4. Strong penetrability to sliver paper, high detection rate

5. Auto-synchronization of numerous mono antennas on site

6.Support remote control with multi-functional tuning interface software

7. Applied with various kinds of the 58KHz hard tag, DR label

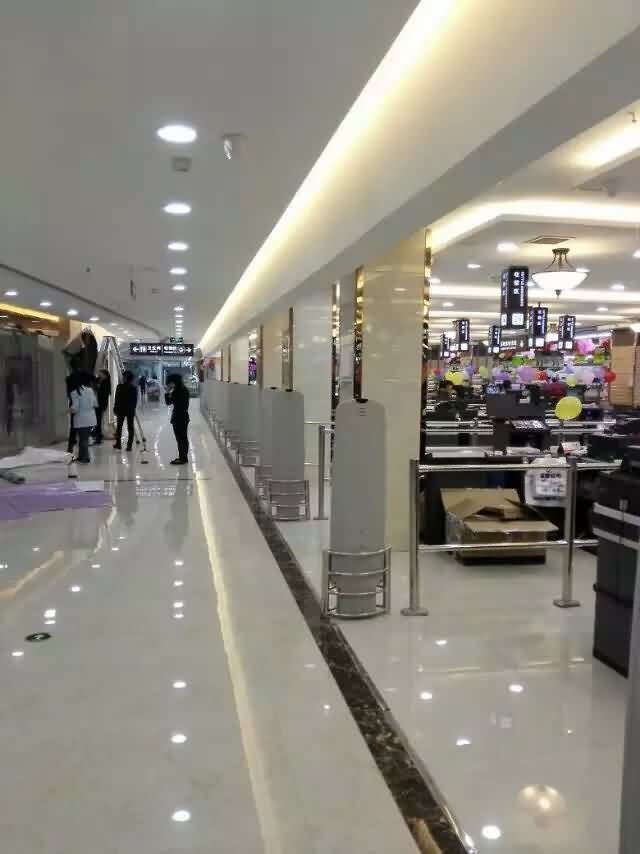

8. Suitable for supermarket, fashion mall, up-end clothing store and retail chain
