AM or RF System  9008 Contact system

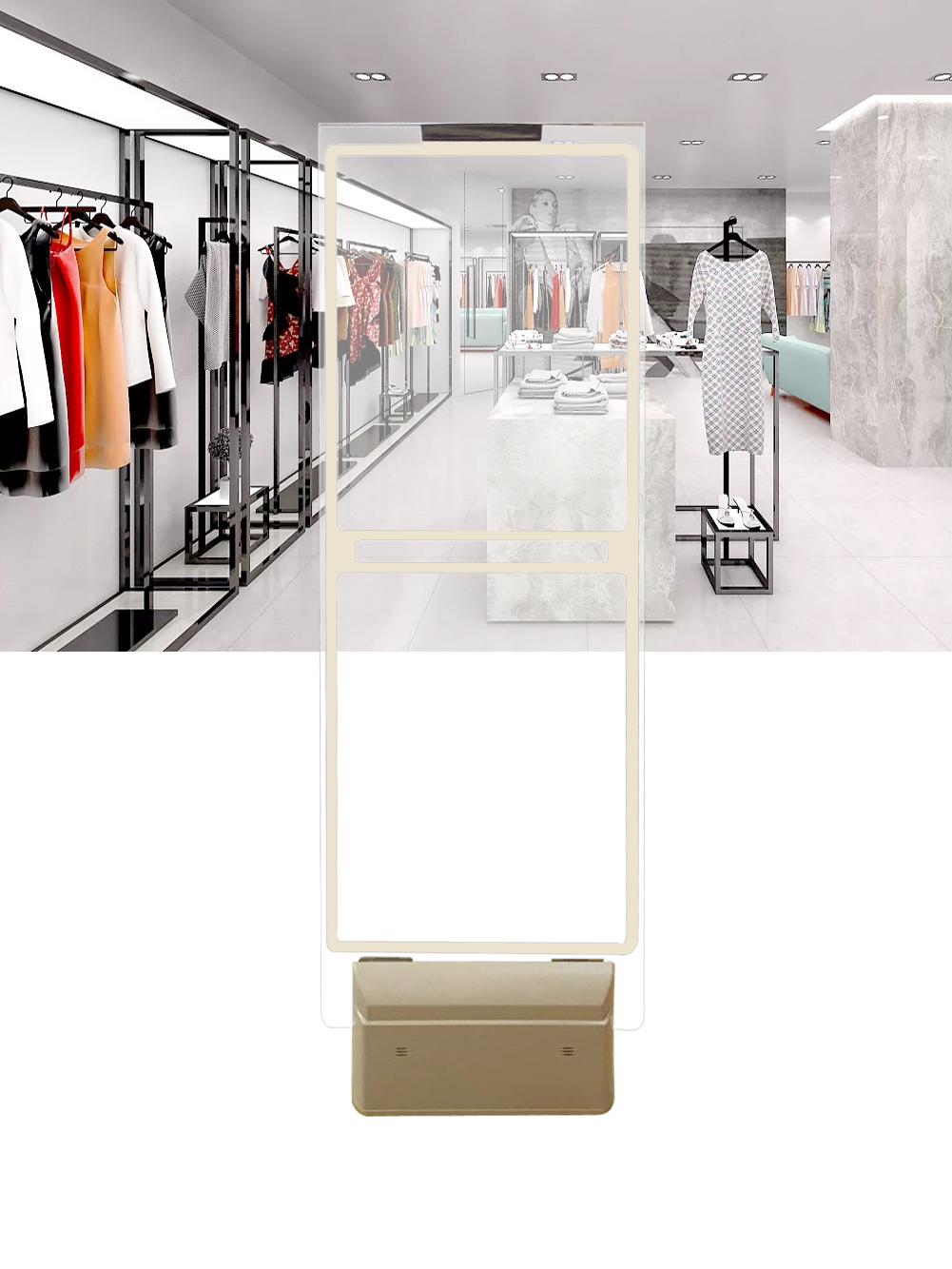

AM Ultra•Exit 2.8m Acrylic Pedestal

Superior shoplifting protection for wide or multiple exits in a sleek, transparent design.

The Ultra•Exit 2.8 Acrylic Pedestal is a key element of the Sensormatic Enhanced Detection suite. Its open-frame design

preserves store aesthetics, while its sleek, high-quality acrylic construction has the right look for virtually any retail setting.

Ideal for wide or multiple exits, this detection system uses Sensormatic AM EAS technology to provide the highest level

of theft detection with up to 2.8m (9ft 18in) of coverage between pedestals to maximize customer flow. Audio and visual

alarms are incorporated into the pedestal to notify staff if protected merchandise passes through the detection zone.

Retailer Values

Straight acrylic form factor preserves store aesthetics

Sensormatic AM EAS technology delivers superior shoplifting protection for wider or multiple exits, maximizing customer flow

Integrated traffic counting option provides Traffic Intelligence and directionality to calculate conversion rates and maximize store performance

EAS Intelligence option allows delivery of in-store operational information to better manage loss prevention and store operation efforts

Integrated Metal-Foil Detection alerts staff when foil-lined bags or clothing enter the store environment, helping combat shrink and ORC

“Tags-too-Close” feature helps reduce unnecessary and costly service calls and helps manage merchandising of tagged products at the store front

Jammer Detection helps reduce shrink by notifying staff of attempts to disable the EAS system using a separate audible alarm

Remote Alarm option alerts staff of alarm events anywhere in store

Service connection port allows full system software control at any antenna, helping reduce in-store service time

Required Choices

Ultra•Exit Base Cover: Dark Gray
(Qty. 1=1 pair)

Ultra•Exit Base Cover: Silver Gray
(Qty. 1=1 pair)

Ultra•Exit Base Cover Standard:
Stainless Steel (Qty. 1=1 pair)
Product Compatibility

Sensormatic AM Sensors

9.75m Concealed Floor System
8.5m Concealed Floor System
7.5m Concealed Floor System

Floor-Max Concealed Floor System
Ranger Receivers Satellite Receivers Amorphous Core Receiver Integrated Traffic Counter Stereo Overhead Traffic Sensor

Mono Overhead Traffic Sensor Local Device Manager II (LDM II) UltraLink Digital Remote Alarm Metal-Foil Detection

Specifications
Height ..................................158cm (62in)

Width ...............................49cm (19.4in)

Thickness/Depth ...............12.5cm (4.9in)

Weight ............................ 25.7kg (56.7lbs)

Electrical Receiver
Center Frequency ........................... 58kHz/8.2MHZ
