manufacture desktop usb uhf rfid reader 4g



Description of desktop usb uhf rfid reader 4g:

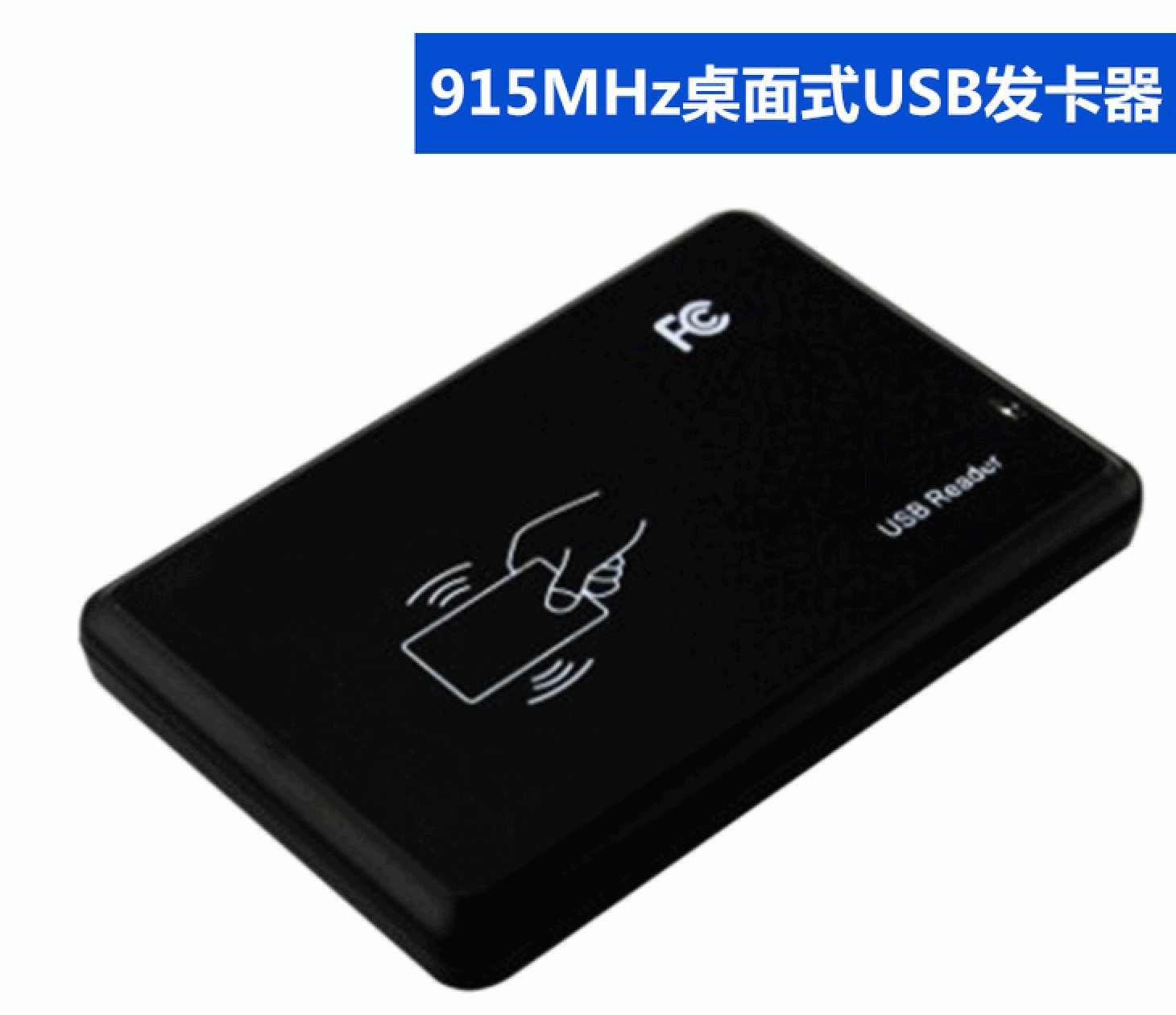

USB desktop UHF RFID reader-2002

The 2002 RFID Reader is a new and innovative antenna built-in integrated RFID desk Reader/writer that is compatible with IS018000 and EPC Class 1 Gen2 of RFID tags. This RFID Reader’s designed as USB interface which is convenient for customer using. This product is widely used for logistics industry,parking system ect.

Specifications:



  Operating frequency   ISM 902MHz~928MHz,available to customize 860~960Mhz
 Support Protocol  ISO18000-6B/ISO18000-6C/EPC Class1G2
 Working Mode  FHSS or working mode of fixed frequency pulse transmitting, set by software.
 Transmit Power 0dbm~10dbm(adjust by software)
 Reading range  0.5M MAX (Depends on reading condition and tags)
 Writing range  0.2M MAX (Depends on reading condition and tags)
 Interface  USB virtual keyboard/ USB virtual serial port
  Antenna   Built-in, 2dbi circularly polarized antenna
  Power supply   USB,5V DC
  Dimension   130mm×85mm×12mm
  Weight   100g
Working Temp  -20℃~+55℃
  Interface USB plus and play
  SDK   API and C# sample





Applications of desktop usb uhf rfid reader 4g:


Identification
Access control, PC Access
Offline Ticketing
Customizing cards
Payment
Road pricing
Asset management
Logistics management
Parking system

Samples are available to order!

For some normal appearance and interface,we always have in stock.
Feel free to contact us to send your inquiry.

Packaging & Delivery

100g/pcs, 1pcs/box,50pcs/carton

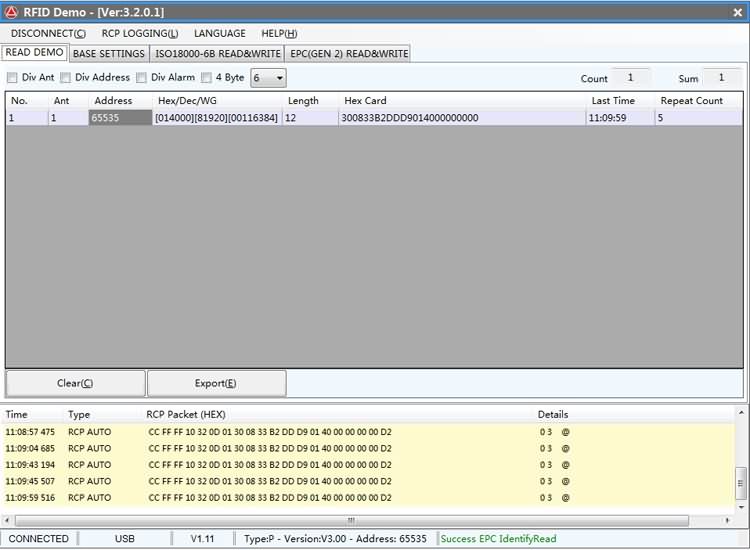

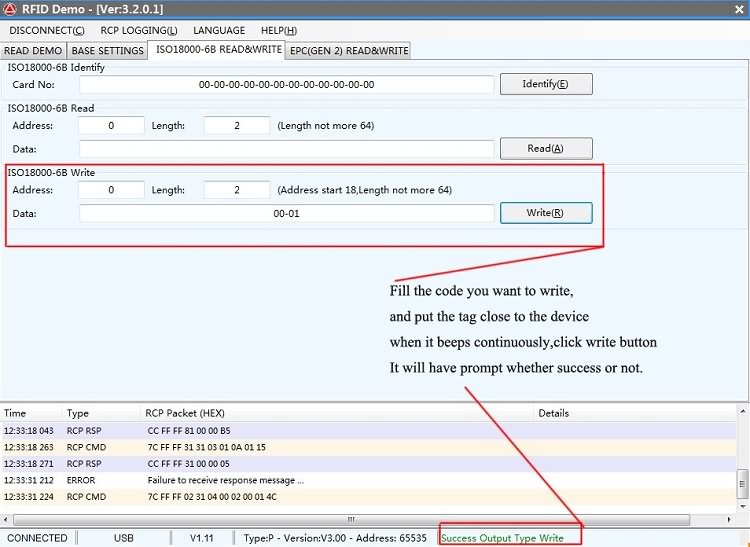

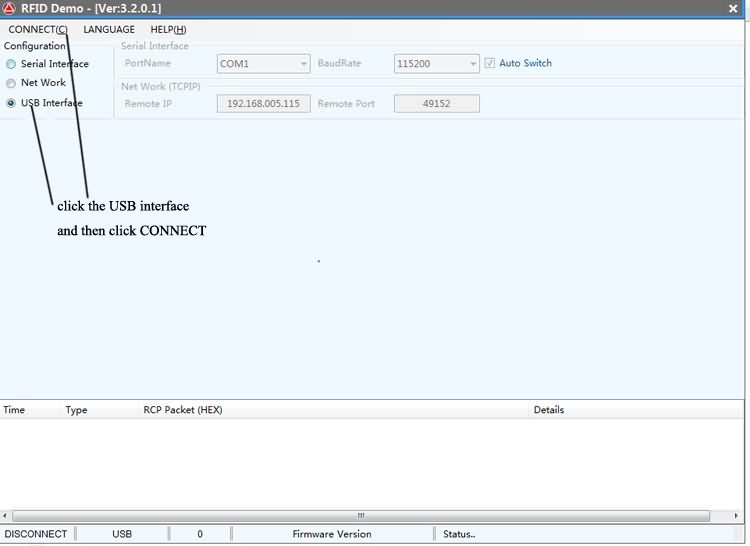

 Picture of Demo:
