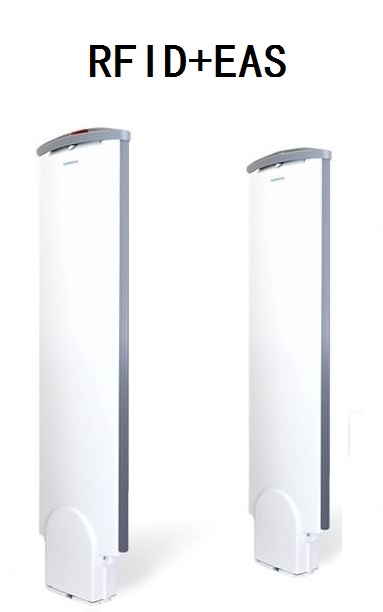

General Description

    UHFREADER18 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient DSP algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

  1. Self-intellectual property;
  2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
  3. 902~928MHz frequency band(frequency customization optional)/8.2MHZ OR 58KHZ;
  4. FHSS or Fix Frequency transmission;
  5. RF output power up to 30dbm(adjustable);
  6. 8dbi/12dbi antenna optional with effect distance up to 3m/10m*;
  7. Support auto-running, interactive and trigger-activating work mode;
  8. Low power dissipation with single +9 DC power supply;
  9. Support RS232, RS485, Wiegand interface;

* Effective distance depends on antenna, tag and environment.
CHARACTERISTICS

  1. Absolute Maximum Rating

ITEM

SYMBOL

VALUE

UNIT

Power Supply

VCC

16

V

Operating Temp.

TOPR

-10~+55

℃

Storage Temp.

TSTR

-20~+75

℃

  1. Electrical and Mechanical Specification

Under TA＝25℃，VCC＝+9V unless specified


ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

8

9

12

V

Current Dissipation

IC



350

650

mA

Frequency

FREQ

902



928

MHz

Interface

Item

Comment

Red

+9V

Black

GND

Yellow

Wiegand DATA0

Blue

Wiegand DATA1

Purple

RS485 R+

Orange

RS485 R-

Brown

GND

White

RS232 RXD

Green

RS232 TXD

Grey

Trigger input（TTL level）

* Optional model named as UHFReader18TCP with TCP/IP interface is also available.
